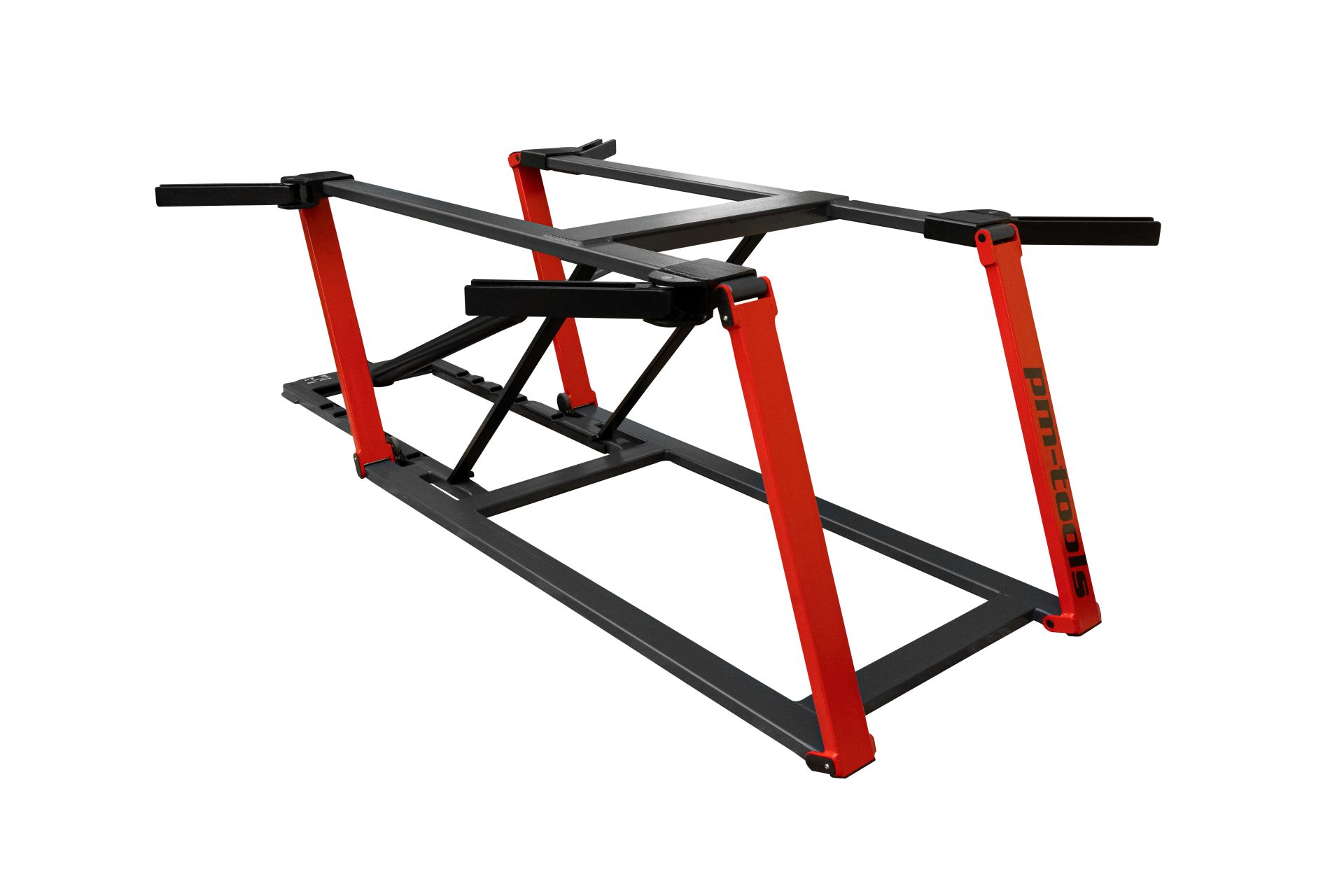

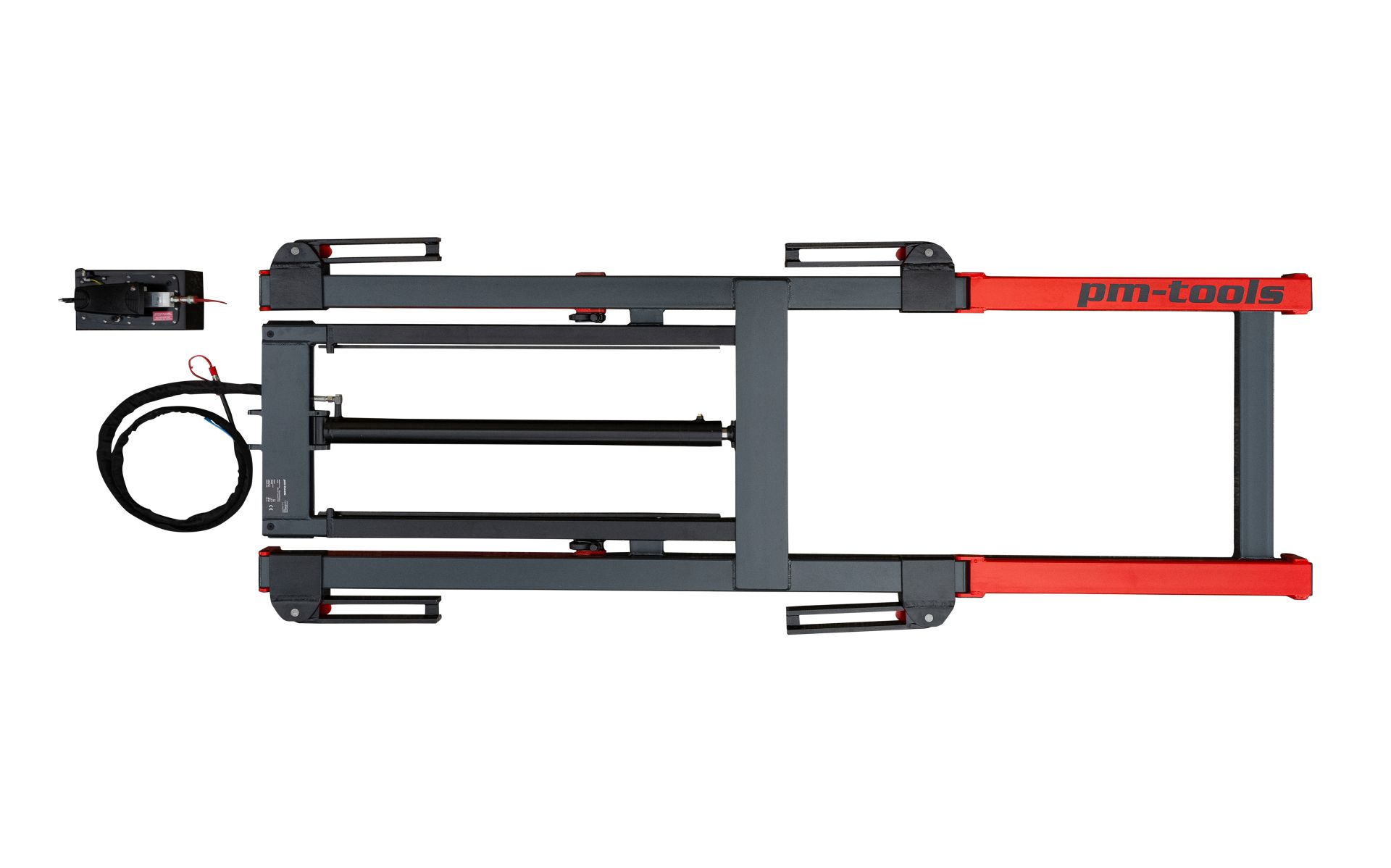

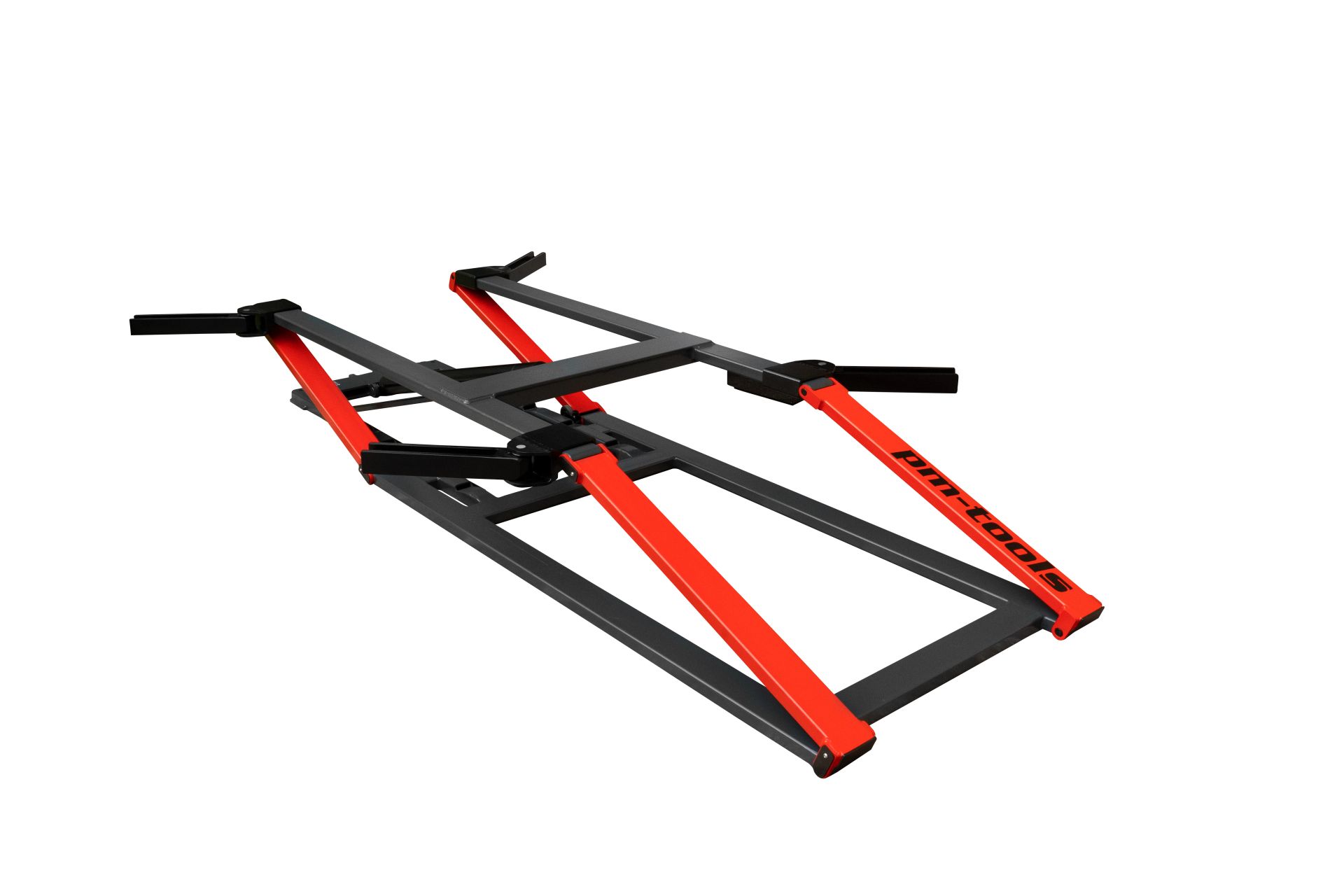

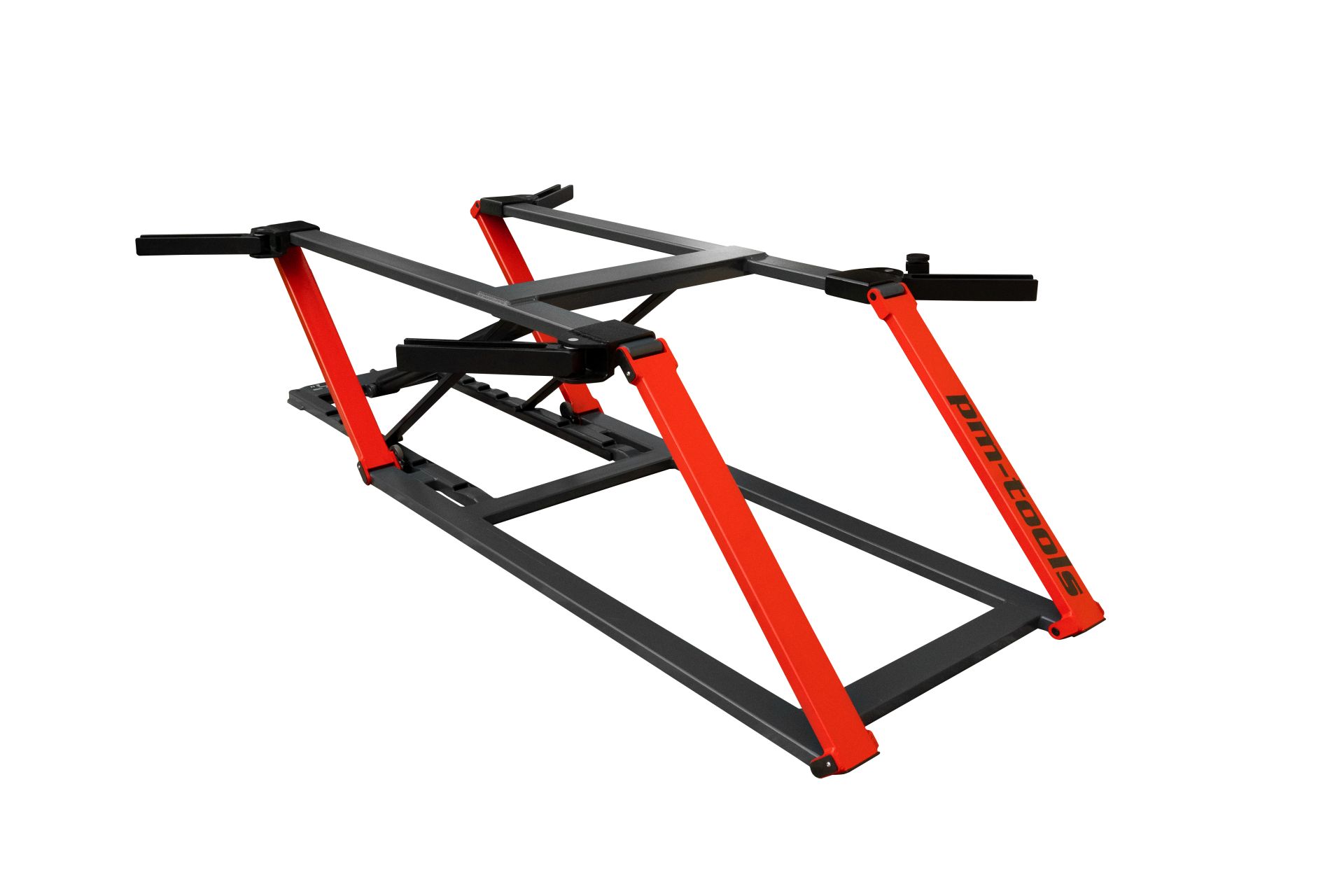

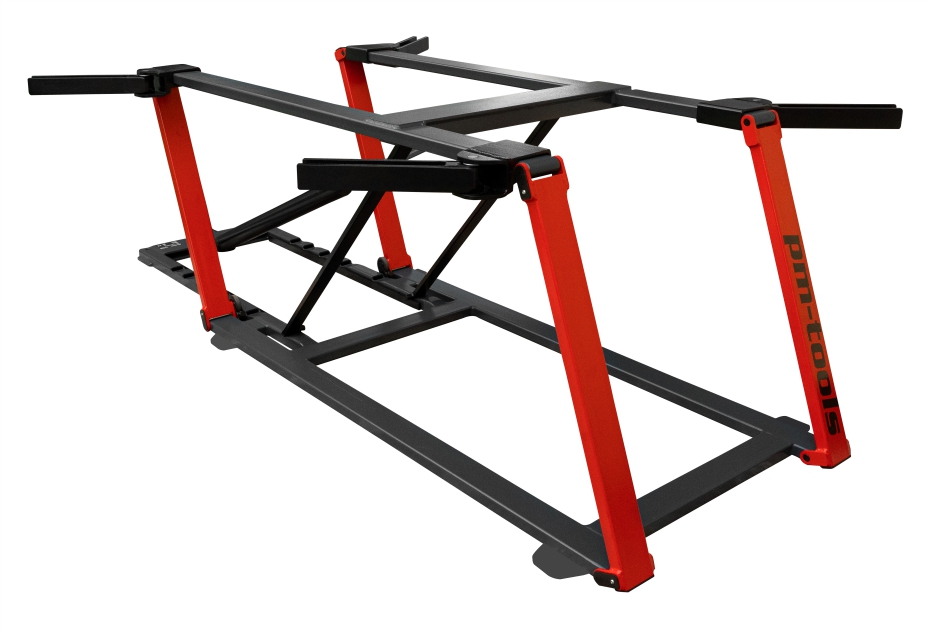

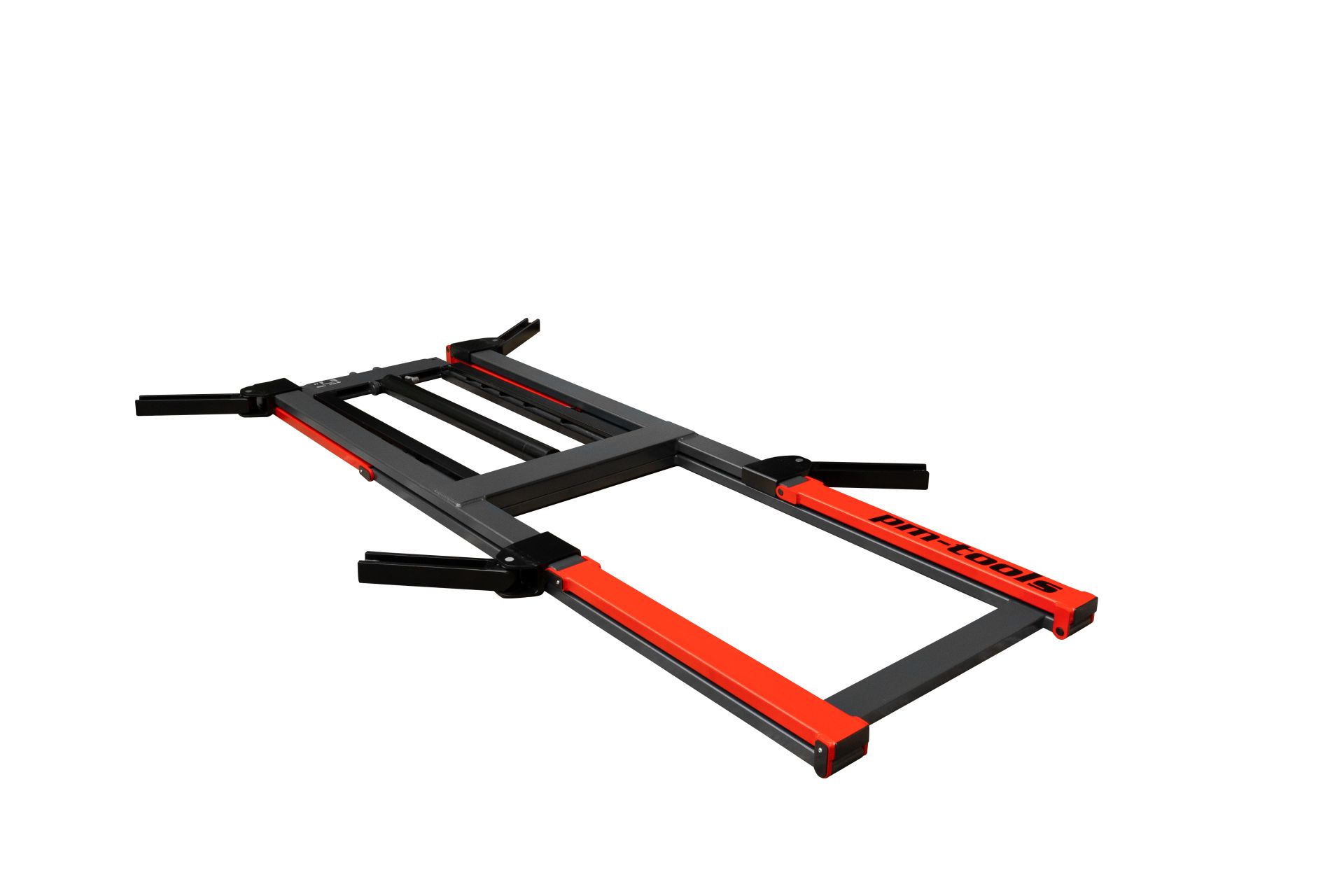

PM Extended Lift 115 PLUS - a lift with an extended design, ideal for vehicles with a longer wheelbase

The PM Extended Lift 115 PLUS is an extended version of the 115, featuring an extended design for increased stability and comfort on larger and longer vehicles. Thanks to its robust frame and the appropriate spacing of support points, it is ideal for vehicles with a long wheelbase, such as the Fiat Ducato L5, but can also cope with small cars such as the Toyota Aygo. It is therefore very versatile in its application and, despite its increased length, still remains fully mobile. Raising the car to a height of around 1 metre significantly improves ergonomics during detailing, wrapping and service work.

The lift retains all the advantages of the basic 115 model - mobility, low starting height and versatility of use. The PLUS version, however, offers an enlarged workspace and greater comfort around the vehicle, making it ideal for professional detailing and car wrapping studios, as well as for handling cars with a larger wheelbase.

The lift has a total of four arms, all of which can be rotated through 180 degrees and are also longitudinally movable. The parallelogram structure, despite its low weight, is very stable.
Lifting height: 1000 mm
Minimum height: 105 mm
Total weight: 310 kg
Dimensions: L 3100 mm, W 1150 mm
Arm length: 480 mm
Arm reach: 2765 mm at 1090 mm wide, 1810 mm at 2050 mm wide

• PNEUMATIC PUMP requires an external compressor, we recommend 3KW 100 l. If you are in doubt whether your compressor will be suitable, please email us.
• The ELECTRIC PUMP requires a 230V single-phase socket.
• OPTION - NON-STANDARD COLOUR: the lift is painted in red/anthracite as standard, any other colour is charged extra. A maximum of two colours may be painted in a single charge; please specify when ordering, e.g. "red/anthracite". "Frame RAL 6002, legs RAL 9003".
• OPTIONAL- OINCINKING PACKAGE -includes: hot-dip galvanised steel, calamities and stainless steel pins.
