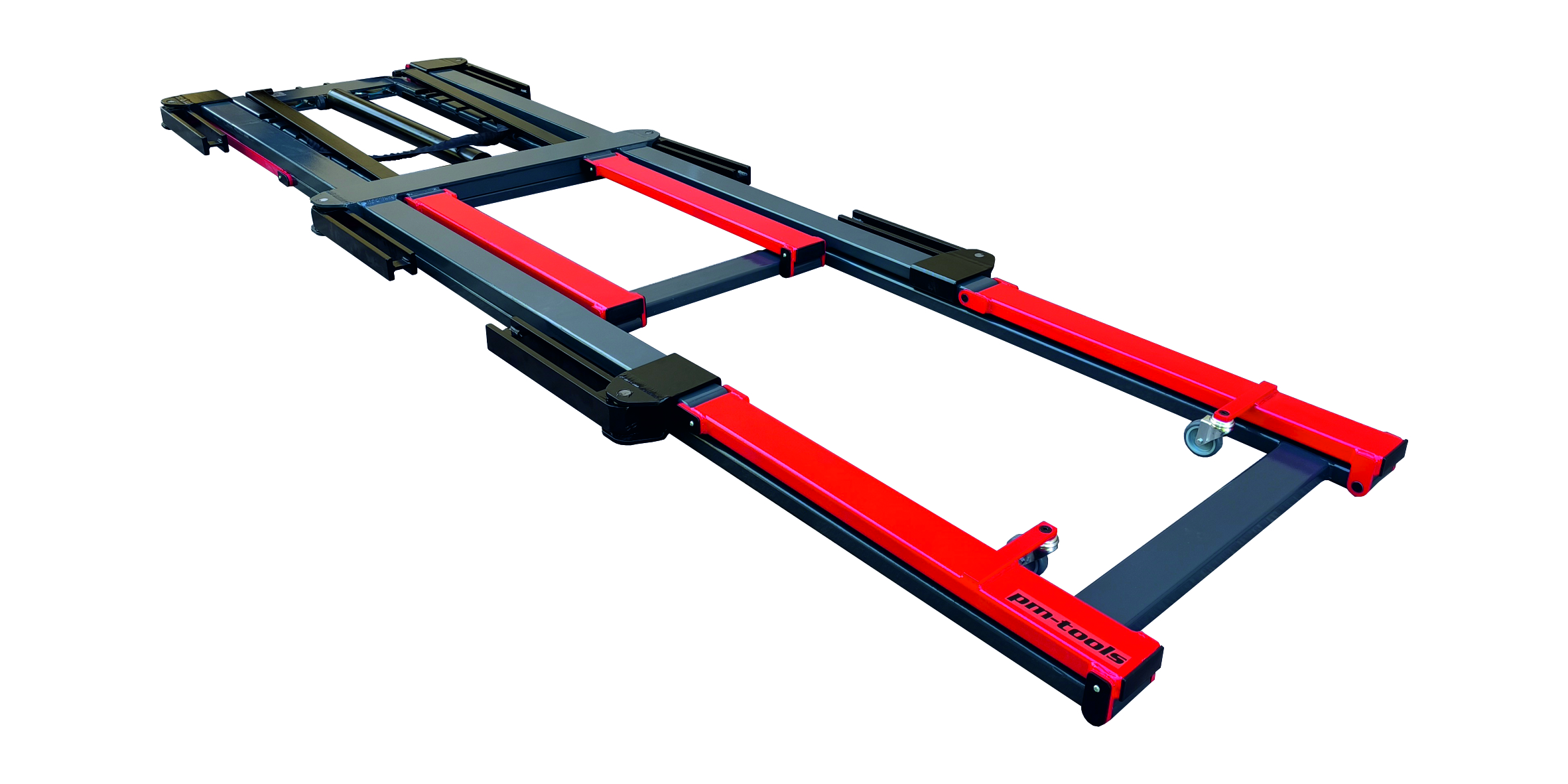

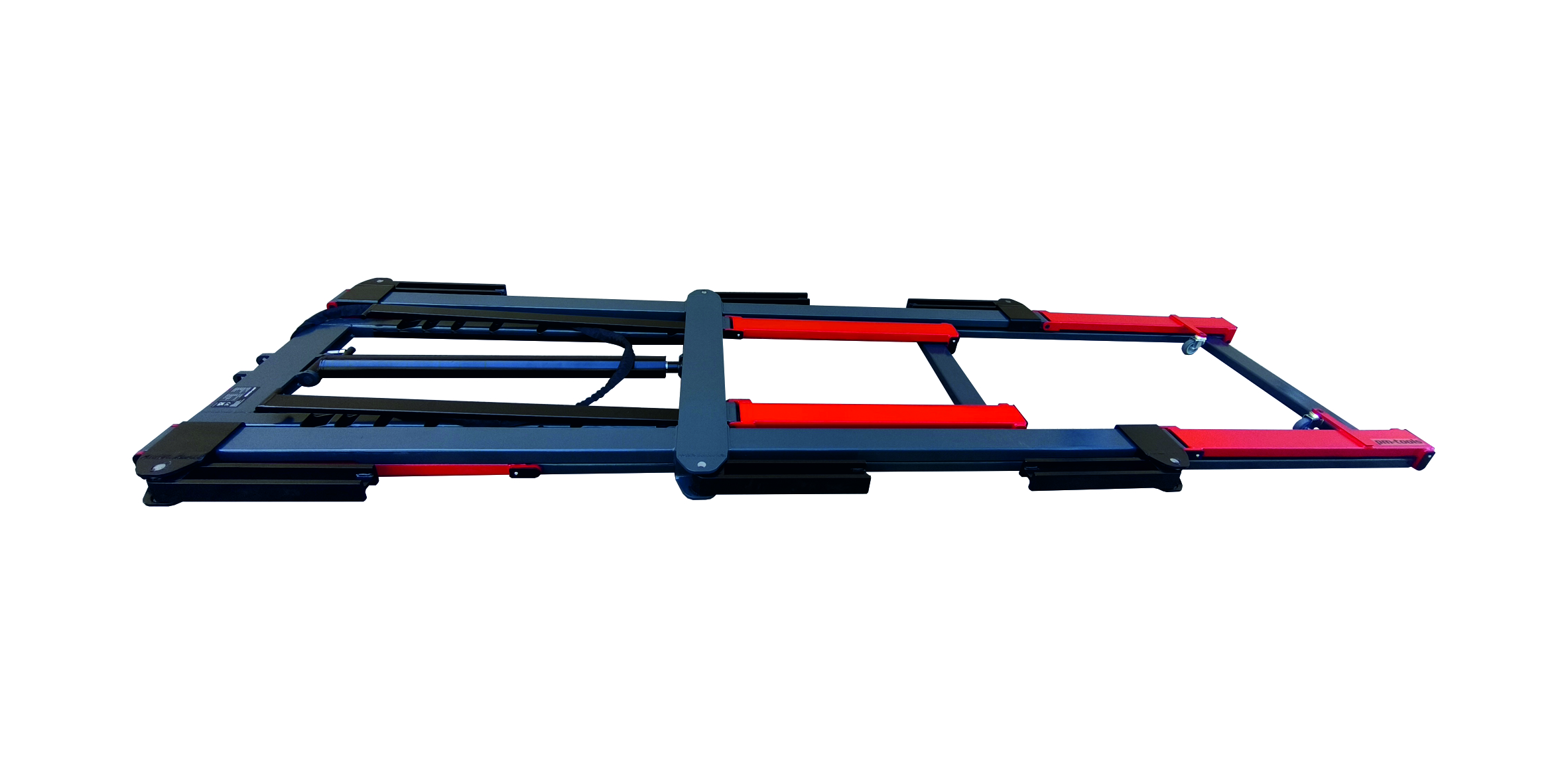

PM Extended Lift PLUS 6×6 – the longest version for vehicles with a very long wheelbase

Model PM Extended Lift PLUS 6×6 this is an extended version of the 115 and 115 PLUS lift, retaining all their key advantages – mobility, low initial height, and versatile applications. However, it features an even longer construction, which allows for comfortable servicing of exceptionally long vehicles.

Thanks to its solid frame and properly spaced support points, it performs exceptionally well with vehicles featuring a very long wheelbase, such as the VW Crafter or Iveco Daily, while remaining fully universal – it also easily handles smaller passenger cars, such as the Toyota Aygo, as well as modern SUVs.

Lifting the vehicle to a height of approximately 1 meter significantly improves working ergonomics during detailing, vehicle wrapping, and servicing tasks. The PLUS 6×6 version offers an even larger working space and greater comfort around the vehicle, making it an ideal solution for professional detailing studios, car wrapping specialists, and workshops servicing a diverse vehicle fleet.

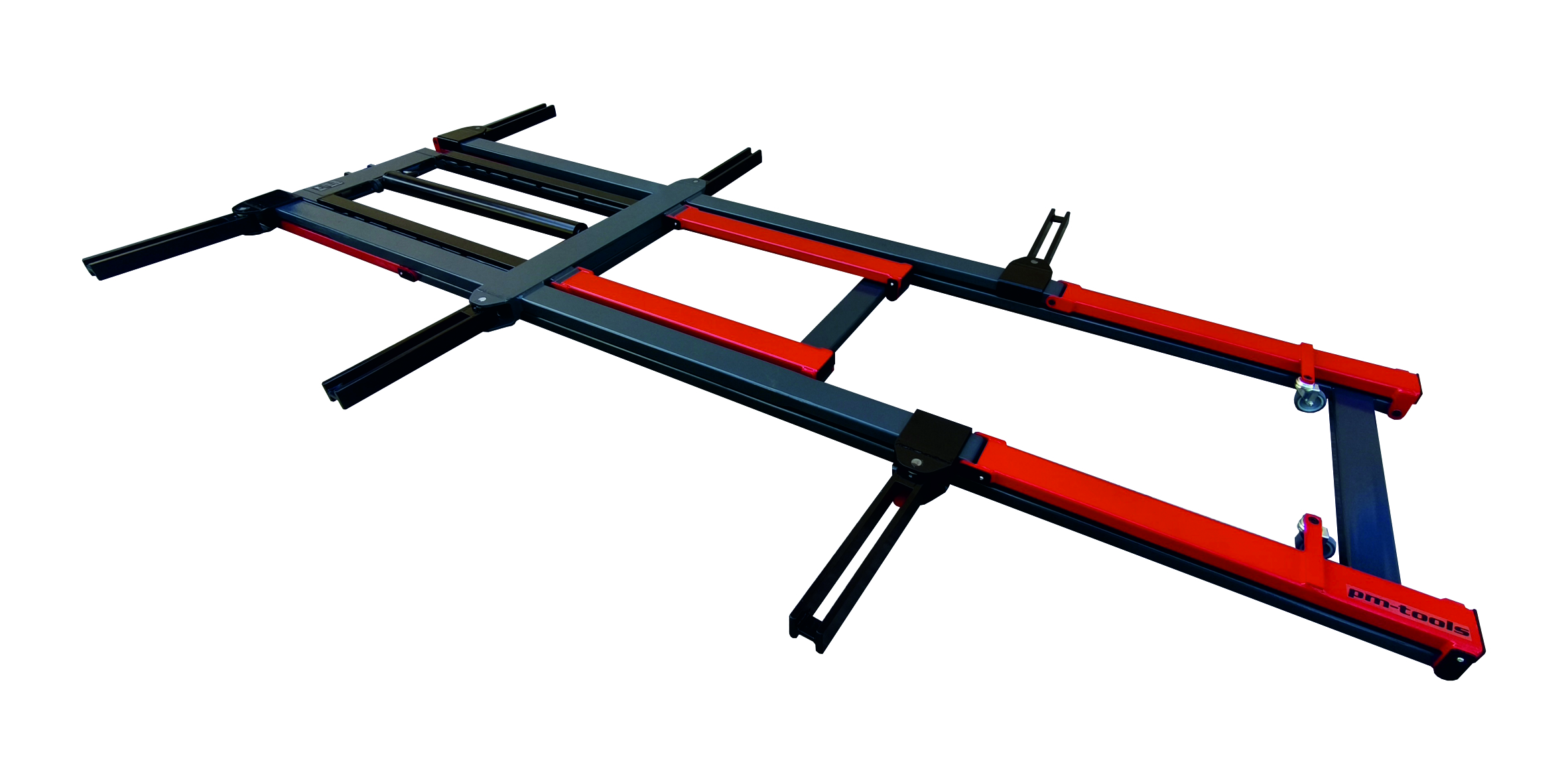

The lift has a total of four arms, all of which can be rotated through 180 degrees and are also longitudinally movable. The parallelogram structure, despite its low weight, is very stable.
Lifting height: 1000 mm
Minimum height: 105 mm
Total weight: 310 kg
Dimensions: length 4000 mm, width 1150 mm.
Arm length: 480 mm
Arm reach: 3665 mm at a width of 1090 mm, 2710 mm at a width of 2050 mm.

• PNEUMATIC PUMP requires an external compressor, we recommend 3KW 100 l. If you are in doubt whether your compressor will be suitable, please email us.
• The ELECTRIC PUMP requires a 230V single-phase socket.
• OPTION - NON-STANDARD COLOUR: the lift is painted in red/anthracite as standard, any other colour is charged extra. A maximum of two colours may be painted in a single charge; please specify when ordering, e.g. "red/anthracite". "Frame RAL 6002, legs RAL 9003".
• OPTIONAL- OINCINKING PACKAGE -includes: hot-dip galvanised steel, calamities and stainless steel pins.
